Submersible Turbine
Max Flow
6,800 US gpm
Max Dynamic Head
1,450 ft
Bowl Sizes
6″–16″
Drivers
6″ to 14″ Diameter Submersible Motors
Standard or All Stainless Steel construction
Applications
Agricultural Irrigation, Municipal, Groundwater, Oil/Gas Wells, Mining, Fountains, Marine, Water Distribution, Hydraulic Engineering
Looking for Taco pumps?CLICK HERE

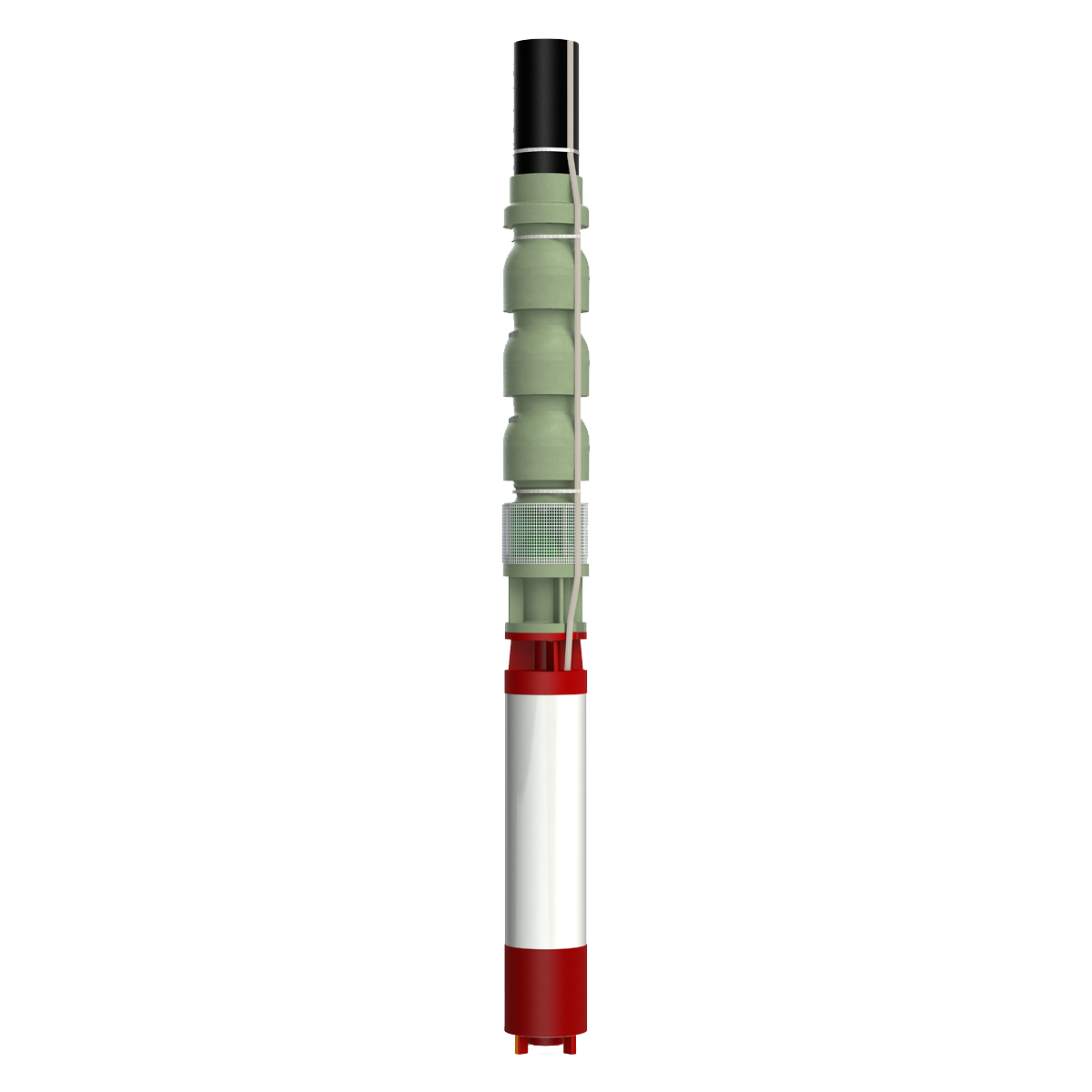

Submersible Vertical Turbine Pumps

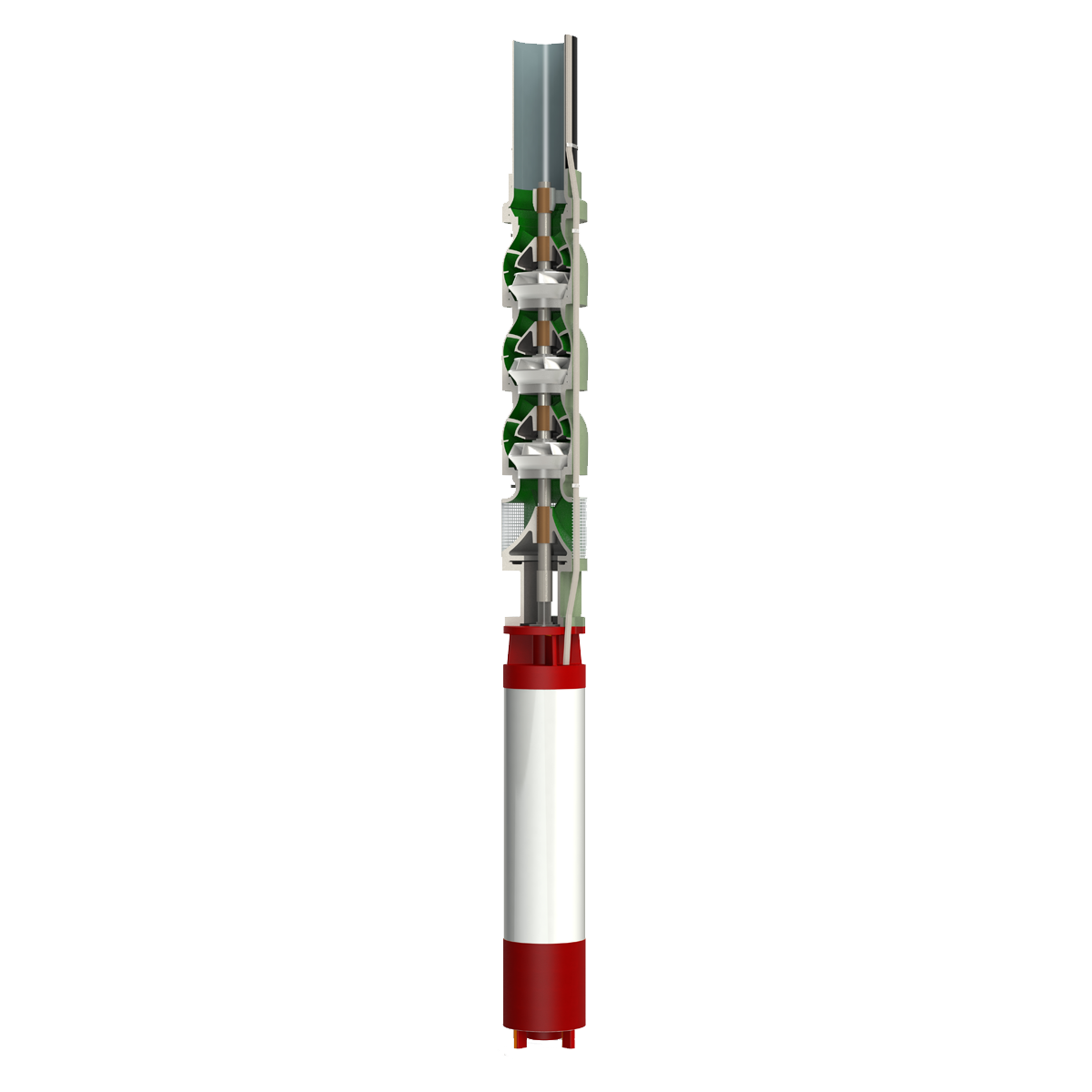

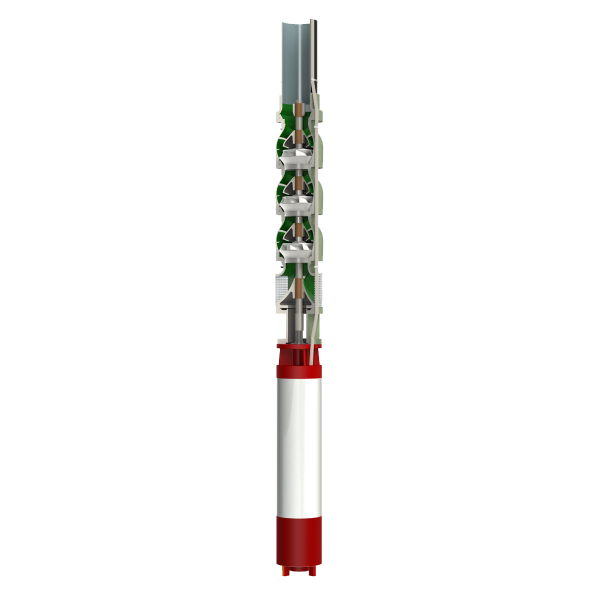

Using radial or modified radial flow impellers vertically (with several impellers encased in a bowl assembly), these rotodynamic pumps are designed to operate underwater in deep wells or boreholes. Directly submerged into a water source to lift water or other liquids from great depths to the surface, these pumps are widely used in groundwater extraction, municipal water supply, and agricultural irrigation applications. Submersible vertical turbine pumps provide efficient and reliable solutions for drawing water from deep reservoirs or aquifers.
Features
- Special coatings and materials
- Wear Rings
- Engineering Analysis
Certifications/Standards
- NSFI/ANSI/CAN 61-G & 372 Certified
- NSF 61 – Potable Water
- HI, AWWA Design Standard
- ASME Design Standard
COMING SOON
COMING SOON
Fabrication
Submersible Discharge Elbows, Drop Pipes, Motor Shrouds, Custom Design
Materials
- Standard 201 and 316 SS Investment Cast Impellers
- Ductile Iron & 316SS Bowls
Testing Facility
- Bowl Assembly Performance Testing
- Witnessed & Non-Witnessed
